SMAJ5.0CA-TR

Stmicroelectronics

SMAJ5.0CA-TR

Name: SMAJ5.0CA-TR Stmicroelectronics
Brand: Stmicroelectronics
SKU: SMAJ5.0CA-TR

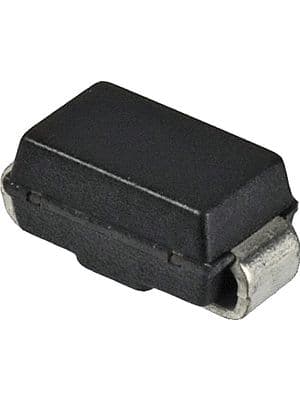

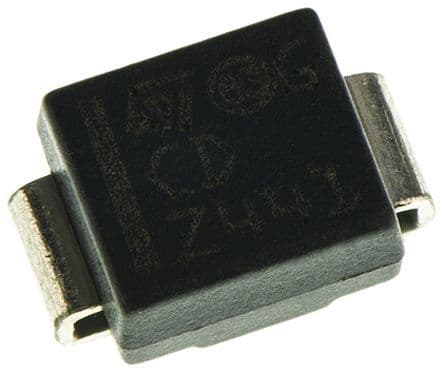

TVS Diode Bi-Dir 5V 400W SMA SMT

Bidirectional Transient Voltage Suppressor (TVS) diode for surface mount applications. Features 400W peak pulse power dissipation and 174A peak pulse current handling. Offers a 5V reverse standoff voltage with a 6.4V reverse breakdown voltage and 13.4V clamping voltage. Operates across a -55°C to +150°C temperature range with 3.5nF capacitance and 20uA leakage current. Packaged in SMA for tape and reel distribution.

PackageSMA

Capacitance3.5nF

MountingSurface Mount

PolarityBidirectional

Quick Jump:

Technical Specifications

Stmicroelectronics SMAJ5.0CA-TR technical specifications.

General

Capacitance	3.5nF
Package/Case	SMA
Clamping Voltage	13.4V
Clamping Voltage-Max	13.4V
Diode Type	ZENER
Direction	Bidirectional
ESD Protection	Yes
Height	2.45mm
Lead Free	Lead Free
Leakage Current	20uA
Length	4.6mm
Max Breakdown Voltage	6.74V
Min Breakdown Voltage	6.4V
Max Forward Surge Current (Ifsm)	40A
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	3.3W
Max Reverse Leakage Current	20uA
Max Reverse Voltage (DC)	5V
Max Surge Current	10mA
Mount	Surface Mount
Number of Bidirectional Channels	1
Number of Elements	1
Operating Supply Voltage	5V
Package Quantity	5000
Packaging	Tape and Reel
Peak Pulse Current	174A
Peak Pulse Power	400W
Polarity	Bidirectional
Power Dissipation	400W
Power Line Protection	No
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	6.4V
Reverse Standoff Voltage	5V
RoHS Compliant	Yes
Series	SMAJ, TRANSIL™
Series Resistance	49mR
Termination	SMD/SMT
DC Rated Voltage	5V
Width	2.9mm
