STMICROELECTRONICS

SMBJ24A-TR

Stmicroelectronics

SMBJ24A-TR

Name: SMBJ24A-TR Stmicroelectronics
Brand: Stmicroelectronics
SKU: SMBJ24A-TR

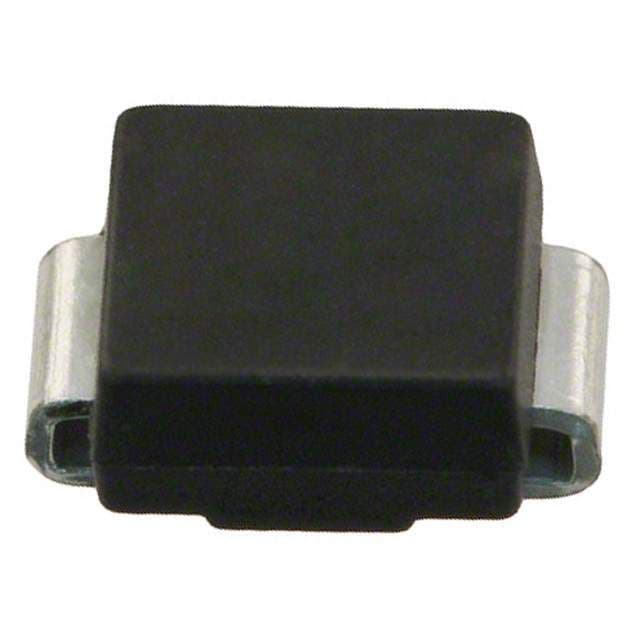

TVS Diode 24V Uni-Dir 600W SMB SMT

Unidirectional TVS diode for transient voltage suppression, featuring a 24V reverse standoff voltage and 600W peak pulse power. This surface mount component offers a 26.7V minimum breakdown voltage and a 50V clamping voltage, with a maximum power dissipation of 515W. Designed for robust protection, it operates across a wide temperature range from -55°C to 150°C and has a low leakage current of 200nA. Packaged in SMB for tape and reel delivery.

PackageSMB

Capacitance1.112nF

MountingSurface Mount

PolarityUnidirectional

Quick Jump:

Technical Specifications

Stmicroelectronics SMBJ24A-TR technical specifications.

General

Capacitance	1.112nF
Package/Case	SMB
Clamping Voltage	50V
Clamping Voltage-Max	50V
Diode Type	ZENER
Direction	Unidirectional
Height	2.45mm
Lead Free	Lead Free
Leakage Current	200nA
Length	4.6mm
Max Breakdown Voltage	28.1V
Min Breakdown Voltage	26.7V
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	515W
Max Repetitive Reverse Voltage (Vrrm)	24V
Max Reverse Leakage Current	200nA
Max Surge Current	16A
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Number of Unidirectional Channels	1
Operating Supply Voltage	24V
Package Quantity	1
Packaging	Tape and Reel
Peak Pulse Current	80A
Peak Pulse Power	600W
Polarity	Unidirectional
Power Dissipation	600W
Power Line Protection	No
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	26.7V
Reverse Standoff Voltage	24V
RoHS Compliant	Yes
Series	SMBJ, TRANSIL™
Series Resistance	256mR
Termination	SMD/SMT
DC Rated Voltage	24V
Width	3.95mm
