Unidirectional Transient Voltage Suppressor (TVS) diode for surface mount applications. Features 400W peak pulse power dissipation and 174A peak pulse current handling. Operates at 5V reverse standoff voltage with a minimum breakdown voltage of 6.46V and a clamping voltage of 13.4V. Offers a low leakage current of 10µA and operates across a wide temperature range from -55°C to 175°C. Packaged in tape and reel for automated assembly.
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics SMM4F5.0A-TR technical specifications.
General
Clamping Voltage
13.4V
Diode Type
ZENER
Direction
Unidirectional
Leakage Current
10uA
Min Breakdown Voltage
6.46V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
400W
Max Reverse Leakage Current
10uA
Max Surge Current
174A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
5V
Package Quantity
12000
Packaging
Tape and Reel
Peak Pulse Current
174A
Peak Pulse Power
400W
Polarity
Unidirectional
Power Line Protection
No
Reverse Breakdown Voltage
6.46V
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Series
SMM4F, TRANSIL™
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics SMM4F5.0A-TR Datasheet
Download the complete datasheet for Stmicroelectronics SMM4F5.0A-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

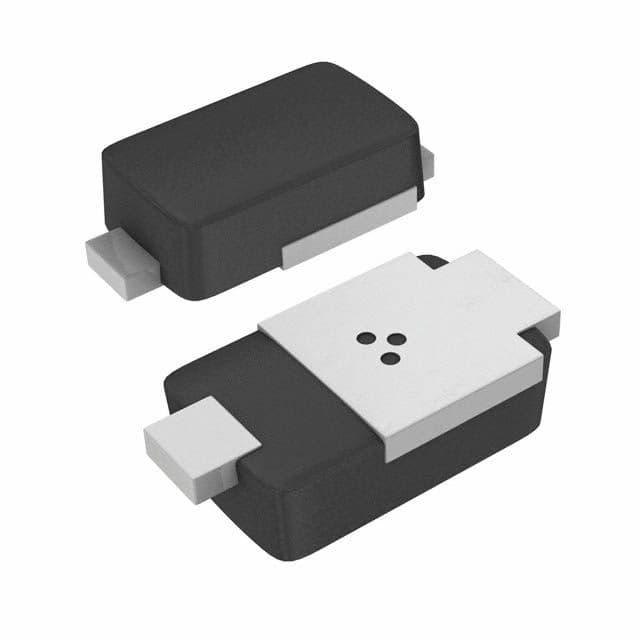

Product Images
