Surface mount RF transceiver supporting ASK, FSK, GFSK, GMSK, MSK, and OOK modulation. Operates across a frequency range of 150MHz to 956MHz with a maximum bandwidth of 806MHz. Features a data rate up to 500Kbps, an output power of 11dBm, and a sensitivity of -118dBm. This 20-pin QFN EP package IC offers SPI interface, 4 GPIO pins, and operates from 1.8V to 3.6V supply voltage. Ideal for wireless applications requiring efficient and versatile RF communication.
Frequency956MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics SPIRIT1QTR technical specifications.
General
Bandwidth
806MHz
Package/Case
QFN
Current - Receiving
9.8mA
Current - Transmitting
54mA
Data Rate
500Kbps
Depth
4mm
Frequency
956MHz
Height
0.95mm
Interface
SPI
Lead Free
Lead Free
Length
4mm
Max Frequency
10MHz
Min Frequency
150MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
400uA
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of GPIO
4
Number of Receivers
1
Number of Transmitters
1
Output Power (dBm)
11dBm
Package Quantity
4500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensitivity
-118dBm
Weight
0.004339oz
Width
4.15mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics SPIRIT1QTR Datasheet
Download the complete datasheet for Stmicroelectronics SPIRIT1QTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

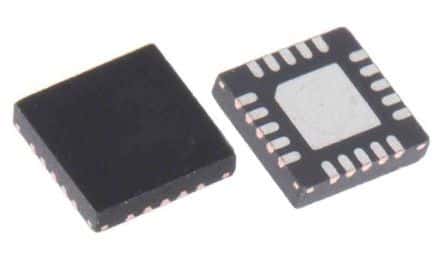

Product Images
