6-pin Smart Reset IC, a surface-mount DFN package measuring 1.6mm x 1.3mm x 0.55mm. Features a reset threshold voltage range of 300mV to 5.5V and operates with a supply voltage from 1.65V to 5.5V. Offers low 3µA supply current and active-low reset functionality. Suitable for applications requiring precise voltage monitoring within an operating temperature range of -40°C to 85°C.
PackageDFN
Current3uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics SR2UARU technical specifications.
General
Package/Case
DFN
Height
0.55mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
5.5V
Min Reset Threshold Voltage
300mV
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Reset
Active Low
RoHS Compliant
Yes
Series
Smart Reset™
Supply Current
3uA
Type
Reset Timer
Watchdog Timer
No
Weight
0.000744oz
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics SR2UARU Datasheet
Download the complete datasheet for Stmicroelectronics SR2UARU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

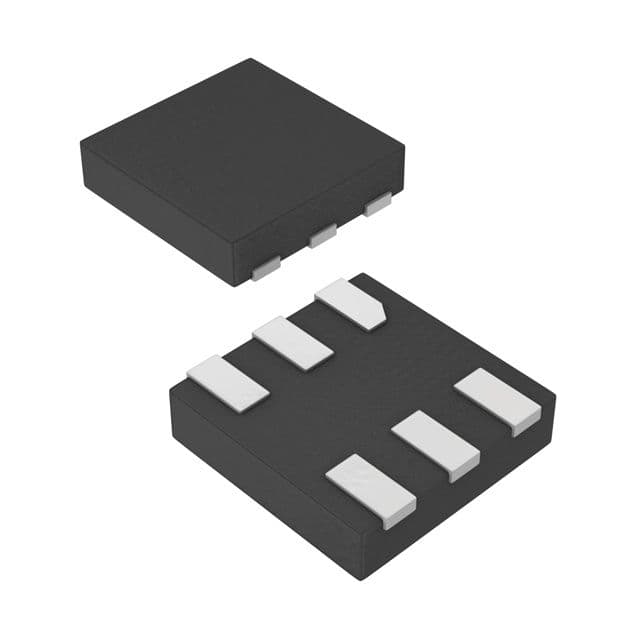

Product Images
