Dual RS-232 bus transceiver, full-duplex, featuring two transmitters and two receivers. Surface mountable in a 16-pin SOP package with dimensions of 10mm (L) x 4mm (W) x 1.65mm (H). Operates with a supply voltage of 4.5V to 5.5V, consuming 5mA of supply current. Supports data rates up to 220Kbps and operates within a temperature range of -40°C to 85°C. RoHS compliant.
PackageSOP
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ST232BDR technical specifications.
General
Package/Case
SOP
Data Rate
220Kbps
Height
1.65mm
Interface
RS-232
Lead Free
Lead Free
Length
10mm
Logic Function
Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
2
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
5mA
Termination
SMD/SMT
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST232BDR Datasheet
Download the complete datasheet for Stmicroelectronics ST232BDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

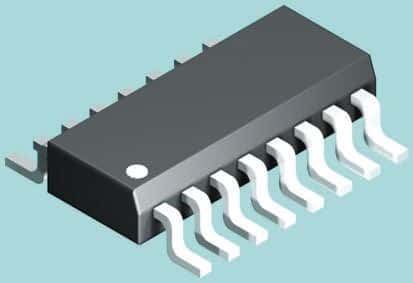

Product Images
