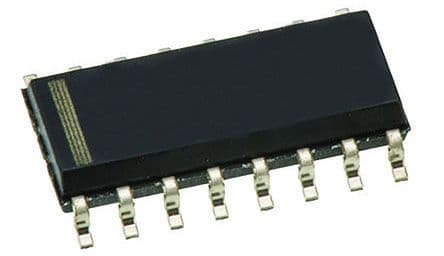

![15KV ESD PROTECTED 5V RS-232 TRANSCEIVER, [0oC, 70oC] TEMPERATURE RANGE](https://static.datasheets.com/image/22948977-stmicroelectronics-st232ecdr-image.png)
PackageSOP
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics ST232ECDR technical specifications.
General
Package/Case
SOP
Data Rate
400Kbps
Height
1.65mm
Lead Free
Lead Free
Length
10mm
Logic Function
Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
10mA
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics ST232ECDR Datasheet
Download the complete datasheet for Stmicroelectronics ST232ECDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
