![3 TO 5.5V, LOW POWER, UP TO 400KBPS RS-232 DRIVERS AND RECEIVERS, [-40oC, 85oC] temperature range](https://static.datasheets.com/image/6491463-stmicroelectronics-st3232bn-image.jpg)
Stmicroelectronics
ST3232BN
3 TO 5.5V, LOW POWER, UP TO 400KBPS RS-232 DRIVERS AND RECEIVERS, [-40oC, 85oC] temperature range
PackageDIP
Current300uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics ST3232BN technical specifications.
General
| Package/Case | DIP |
| Data Rate | 0.4Mbps |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Output Voltage | 5.4V |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Supply Current | 300uA |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics ST3232BN Datasheet
Download the complete datasheet for Stmicroelectronics ST3232BN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

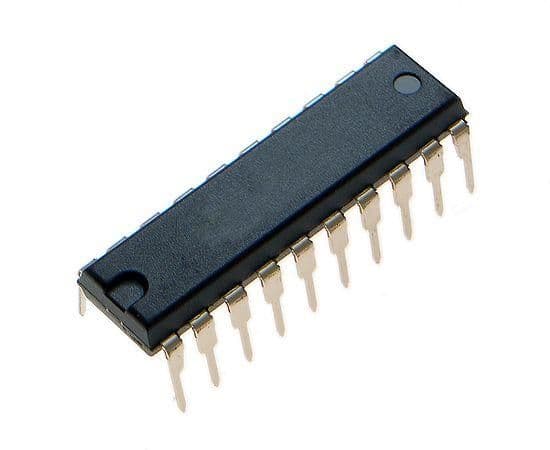

Product Images
