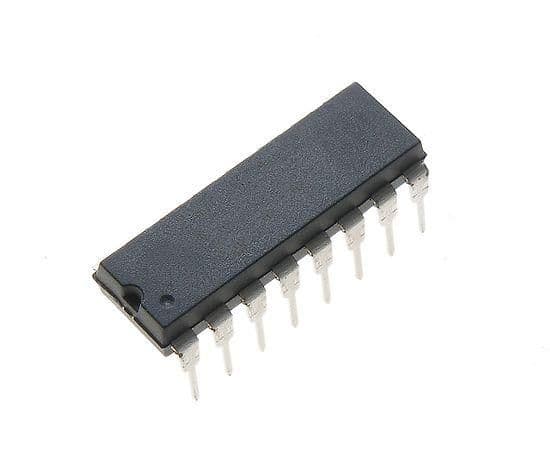

![15KV ESD PROTECTED, 3 TO 5.5 V LOW POWER UP TO 250KBPS, RS232 DRIVERS AND RECEIVERS,[-40oC, 85oC] TEMPERATURE RANGE](https://static.datasheets.com/image/24764465-stmicroelectronics-st3232ebn-image.jpg)
Stmicroelectronics
ST3232EBN
15KV ESD PROTECTED, 3 TO 5.5 V LOW POWER UP TO 250KBPS, RS232 DRIVERS AND RECEIVERS,[-40oC, 85oC] TEMPERATURE RANGE
PackagePDIP
Current300uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics ST3232EBN technical specifications.
General
| Package/Case | PDIP |
| Data Rate | 250Kbps |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Receiver Hysteresis | 500mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 300uA |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics ST3232EBN Datasheet
Download the complete datasheet for Stmicroelectronics ST3232EBN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
