Low power RS-485/RS-422 transceiver, a single-channel bus transceiver supporting RS-422 and RS-485 interfaces. Features a 2.5Mbps data rate and operates from a 4.75V to 5.25V supply voltage, with a typical 5V operating voltage and 900uA supply current. Packaged in a lead-free SOIC with surface mount termination, this component offers 1 driver and 1 receiver for robust communication.
PackageSOIC
Current900uA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics ST485BDR technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 2.5Mbps |
| Height | 1.25mm |
| Interface | RS-422, RS-485 |
| Lead Free | Lead Free |
| Length | 5mm |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Input Lines | 2 |
| Number of Output Lines | 2 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 900uA |
| Termination | SMD/SMT |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics ST485BDR Datasheet
Download the complete datasheet for Stmicroelectronics ST485BDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

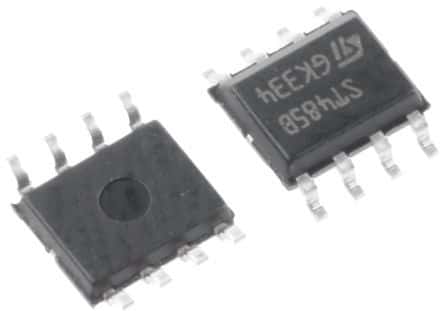

Product Images
