N-channel MOSFET featuring 60V drain-source breakdown voltage and 23A continuous drain current. Offers a low 28mΩ maximum drain-source on-resistance. Designed for through-hole mounting in a TO-220-3 package, this component operates from -55°C to 175°C with a 30W maximum power dissipation. Includes fast switching characteristics with 11ns fall time and 27ns turn-on/turn-off delay times.
PackageTO-220-3
Current Rating23A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STF40NF06 technical specifications.
General
Package/Case
TO-220-3
Continuous Drain Current (ID)
23A
Current Rating
23A
Drain to Source Breakdown Voltage
60V
Drain to Source Resistance
28mR
Drain to Source Voltage (Vdss)
60V
Drain-source On Resistance-Max
28MR
Fall Time
11ns
Gate to Source Voltage (Vgs)
20V
Input Capacitance
920pF
Lead Free
Lead Free
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
30W
Mount
Through Hole
Package Quantity
1000
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
30W
Radiation Hardening
No
Rds On Max
28mR
RoHS Compliant
Yes
Series
STripFET™ II
Turn-Off Delay Time
27ns
Turn-On Delay Time
27ns
DC Rated Voltage
60V
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STF40NF06 Datasheet
Download the complete datasheet for Stmicroelectronics STF40NF06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

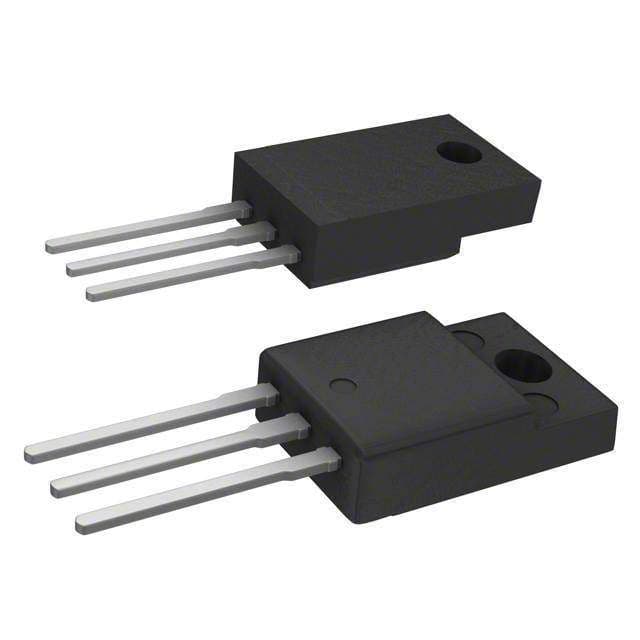

Product Images
