PackageTO-247-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics STGW40H120DF2 technical specifications.
General
| Package/Case | TO-247-3 |
| Collector Emitter Breakdown Voltage | 1.2kV |
| Collector Emitter Saturation Voltage | 2.1V |
| Collector-emitter Voltage-Max | 2.6V |
| Input Type | STANDARD |
| Lead Free | Lead Free |
| Max Collector Current | 80A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 468W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Reverse Recovery Time | 488ns |
| Weight | 1.340411oz |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STGW40H120DF2 Datasheet
Download the complete datasheet for Stmicroelectronics STGW40H120DF2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

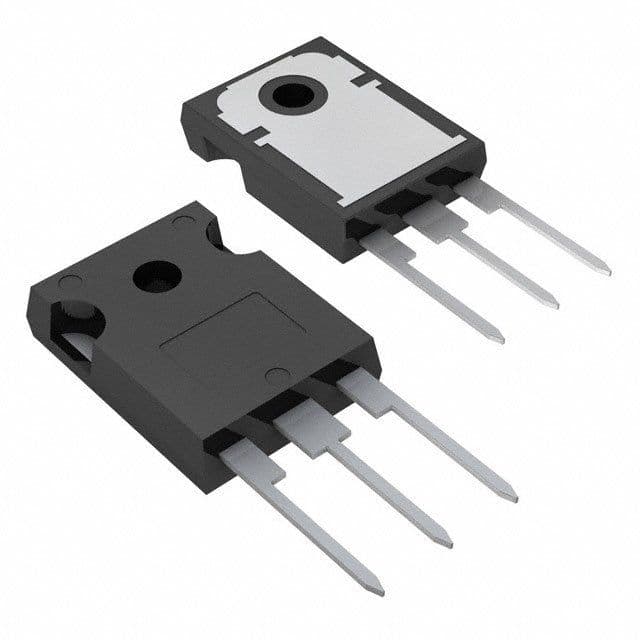

Product Images
