Dual N-channel MOSFET featuring 30V drain-source breakdown voltage and 16mΩ typical drain-source on-resistance. This automotive-grade power MOSFET offers a continuous drain current of 40A and a maximum power dissipation of 60W. Designed for surface mounting in a PowerFLAT 5x6 double island package, it boasts fast switching characteristics with a 4ns turn-on delay and 2.8ns fall time. Operating across a wide temperature range from -55°C to 150°C, this RoHS compliant component is ideal for demanding applications.
MountingSurface Mount
PolarityN-CHANNEL
Power60W
Quick Jump:
Technical Specifications
Stmicroelectronics STL40DN3LLH5 technical specifications.
General
Continuous Drain Current (ID)
40A
Drain to Source Breakdown Voltage
30V
Drain to Source Resistance
16mR
Drain to Source Voltage (Vdss)
30V
Drain-source On Resistance-Max
18MR
Fall Time
2.8ns
FET Type
2 N-Channel
Gate to Source Voltage (Vgs)
22V
Height
0.85mm
Input Capacitance
475pF
Lead Free
Lead Free
Length
4.75mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
60W
Mount
Surface Mount
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
60W
Radiation Hardening
No
Rds On Max
18mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STripFET™ V
Threshold Voltage
1.5V
Turn-Off Delay Time
13ns
Turn-On Delay Time
4ns
Width
5.75mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STL40DN3LLH5 Datasheet
Download the complete datasheet for Stmicroelectronics STL40DN3LLH5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

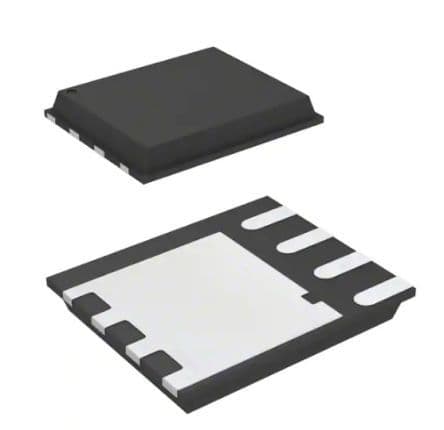

Product Images
