N-channel power MOSFET featuring 30V drain-source breakdown voltage and 75A continuous drain current. Offers a low 5.7mΩ drain-source on-resistance at a nominal Vgs of 1V. Designed for surface mount applications with a 6 x 5 mm POWERFLAT-8 package. Includes a maximum power dissipation of 60W and operates within a temperature range of -55°C to 150°C. RoHS compliant with tape and reel packaging.
MountingSurface Mount
PolarityN-CHANNEL
Power60W
Quick Jump:
Technical Specifications
Stmicroelectronics STL75NH3LL technical specifications.
General
Continuous Drain Current (ID)
75A
Drain to Source Breakdown Voltage
30V
Drain to Source Resistance
5.7mR
Drain to Source Voltage (Vdss)
30V
Drain-source On Resistance-Max
5.7mR
Dual Supply Voltage
30V
Fall Time
20ns
Gate to Source Voltage (Vgs)
16V
Input Capacitance
1.81nF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
60W
Mount
Surface Mount
Nominal Vgs
1V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
60W
Rds On Max
5.7mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STripFET™
Termination
SMD/SMT
Threshold Voltage
1V
Turn-Off Delay Time
30ns
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STL75NH3LL Datasheet
Download the complete datasheet for Stmicroelectronics STL75NH3LL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

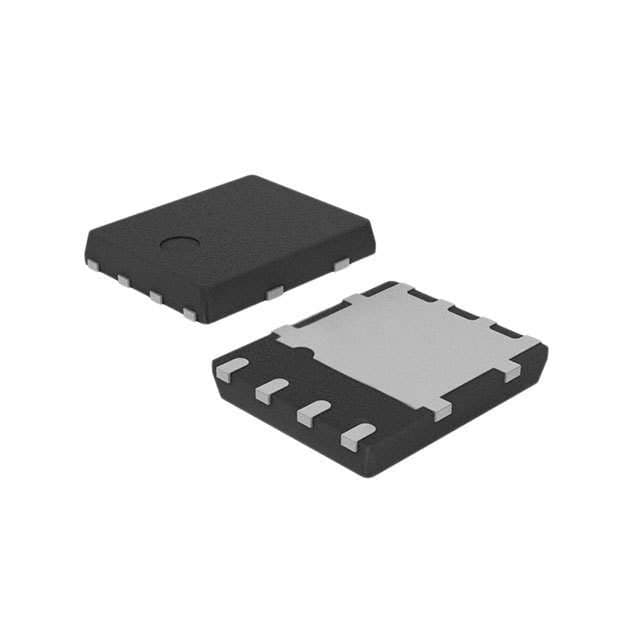

Product Images
