Surface mount DC/DC boost controller for white LED backlighting of large displays. Features a 3V to 5.5V input voltage range and a maximum output voltage of 37V. Delivers 20mA output current per channel with a low 1.2mA supply current. Operates across a -40°C to 85°C temperature range and is RoHS compliant. Packaged in QFN for tape and reel delivery.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STLD40DPUR technical specifications.
General
Package/Case
QFN
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
1.2mA
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Current
20mA
Output Current per Channel
20mA
Output Voltage
37V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STLD40DPUR Datasheet
Download the complete datasheet for Stmicroelectronics STLD40DPUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

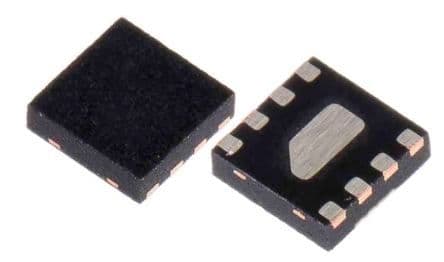

Product Images
