Analog temperature sensor, surface mount, operating from a 2.4V to 5.5V supply. Features ultra-low 8µA supply current and high precision analog voltage output. With a wide operating temperature range of -40°C to 85°C, this RoHS compliant component is ideal for general environmental sensing applications. Its compact 1.3mm x 1mm x 0.48mm dimensions and tape and reel packaging facilitate efficient assembly.
Current8uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STLM20DD9F technical specifications.
General
Height
0.48mm
Lead Free
Lead Free
Length
1.3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.4V
Max Supply Voltage
5.5V
Min Supply Voltage
2.4V
Mount
Surface Mount
Operating Supply Current
8uA
Output Current
10mA
Output Type
Analog Voltage, Analog
Output Voltage
1.864V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
8uA
Termination
SMD/SMT
Width
1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STLM20DD9F Datasheet
Download the complete datasheet for Stmicroelectronics STLM20DD9F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

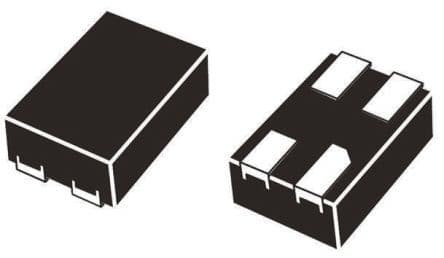

Product Images
