32-bit ARM Cortex-M0 microcontroller featuring 32KB FLASH memory and operating up to 48MHz. This MCU offers 39 programmable I/Os, 12 ADC channels, and 5 timers/counters. Interfaces include I2C, SPI, UART, and USART. Packaged in LQFP for surface mounting, it operates from 2.4V to 3.6V with a maximum power dissipation of 364mW. RoHS compliant and lead-free, with an operating temperature range of -40°C to 85°C.
Frequency48MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F030C6T6TR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
364mW
Max Supply Voltage
3.6V
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
39
Number of Programmable I/O
39
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
2400
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
STM32F0
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F030C6T6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F030C6T6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

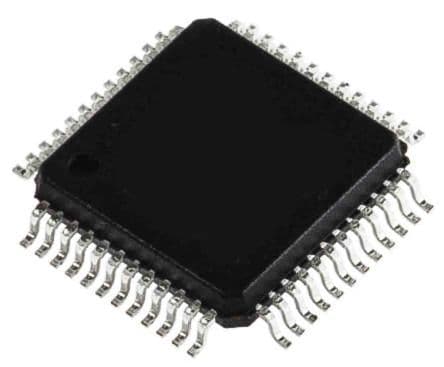

Product Images
