32-bit ARM Cortex-M0 microcontroller featuring 64KB FLASH memory and 8KB RAM. Operates at up to 48MHz with 39 programmable I/Os. Includes 2x I2C, 2x SPI, and UART/USART interfaces, plus 12 ADC channels and 6 PWM channels. Packaged in LQFP, this RoHS compliant MCU operates from 2.4V to 3.6V, with a temperature range of -40°C to 85°C.
Frequency48MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F030C8T6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
48MHz
Height
1.45mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
7.2mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
364mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.4V
Number of ADC Channels
12
Number of I/Os
39
Number of I2C Channels
2
Number of Programmable I/O
39
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
7
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F0
Watchdog Timer
Yes
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F030C8T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F030C8T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

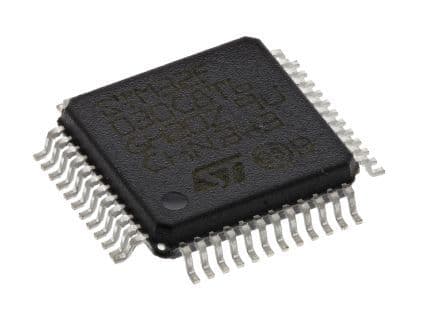

Product Images
