32-bit ARM Cortex-M0 microcontroller featuring 16KB FLASH memory and 4KB RAM. Operates at a maximum frequency of 48MHz with a 32-bit data bus. Offers I2C, SPI, and UART/USART interfaces, 11 ADC channels, and 15 I/Os. Supports a supply voltage range of 2.4V to 3.6V and operates from -40°C to 85°C. Includes peripherals like POR, PWM, WDT, and DMA. Packaged in TSSOP.
Frequency48MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F030F4P6 technical specifications.
General
Package/Case
TSSOP
Core Architecture
ARM
Data Bus Width
32b
Density
16KB
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.4V
Nominal Supply Current
3.4uA
Number of ADC Channels
11
Number of Channels
9
Number of I/Os
15
Oscillator Type
Internal
Package Quantity
1480
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT, DMA
RAM Size
4KB
RoHS Compliant
Yes
Series
STM32F0
Weight
0.006737oz
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F030F4P6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F030F4P6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

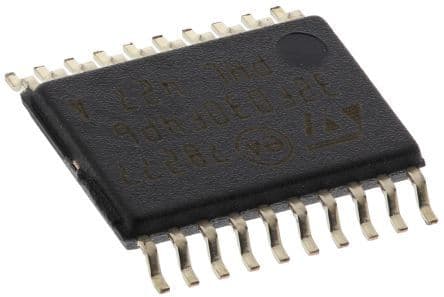

Product Images
