32-bit ARM Cortex-M0 microcontroller featuring 32KB FLASH memory and 4KB RAM. Operates at up to 48MHz with 39 programmable I/Os and 10 ADC channels. Supports I2C, SPI, UART, USART, LIN, and I2S interfaces. Includes 6 timers/counters and peripherals like POR, PWM, WDT, and DMA. Packaged in LQFP, operating from -40°C to 85°C with a 3.6V supply.
Frequency48MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F031C6T6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
364mW
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
10
Number of I/Os
39
Number of Programmable I/O
39
Number of Timers/Counters
6
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
STM32 F0
Watchdog Timer
Yes
Weight
0.006409oz
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F031C6T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F031C6T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

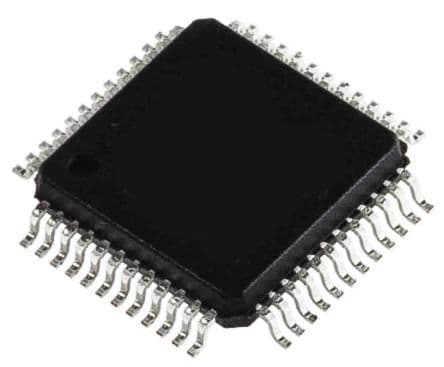

Product Images
