32-bit ARM Cortex-M0 microcontroller featuring 16KB FLASH memory and 6KB RAM. Operates at a maximum frequency of 48MHz with a 32-bit data bus. Offers extensive interface support including I2C, SPI, USB, CAN, and UART. Includes 13 ADC channels, 38 programmable I/Os, and 5 timers. Packaged in LQFP for surface mounting, with a wide operating temperature range of -40°C to 85°C.
Frequency48MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F042C4T6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, HDMI, IrDA, UART, USART, CAN, LIN, I2S
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
364mW
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
38
Number of Programmable I/O
38
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
1500
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
6KB
RoHS Compliant
Yes
Series
STM32F0
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F042C4T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F042C4T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

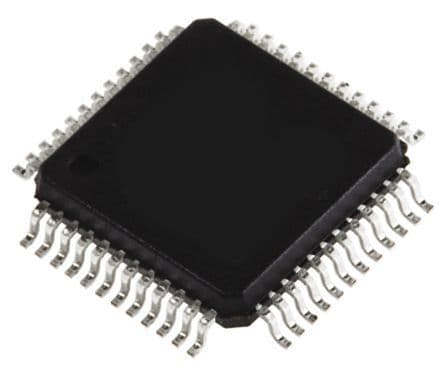

Product Images
