32-bit ARM Cortex-M0 microcontroller featuring 32KB FLASH memory and 6KB RAM. Operates at a maximum frequency of 48MHz with 38 I/Os. Integrated peripherals include I2C, SPI, USB, CAN, CEC, UART, USART, LIN, I2S, POR, PWM, WDT, and DMA. Surface mount UFQFPN package, operating temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Frequency48MHz
PackageUFQFPN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F042C6U6 technical specifications.
General
| Package/Case | UFQFPN |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Interface | I2C, SPI, USB, HDMI, IrDA, UART, USART, CAN, LIN, I2S |
| Lead Free | Lead Free |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 606mW |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 38 |
| Number of Programmable I/O | 38 |
| Number of Timers/Counters | 6 |
| Oscillator Type | Internal |
| Package Quantity | 1560 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 6KB |
| RoHS Compliant | Yes |
| Series | STM32F0 |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F042C6U6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F042C6U6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

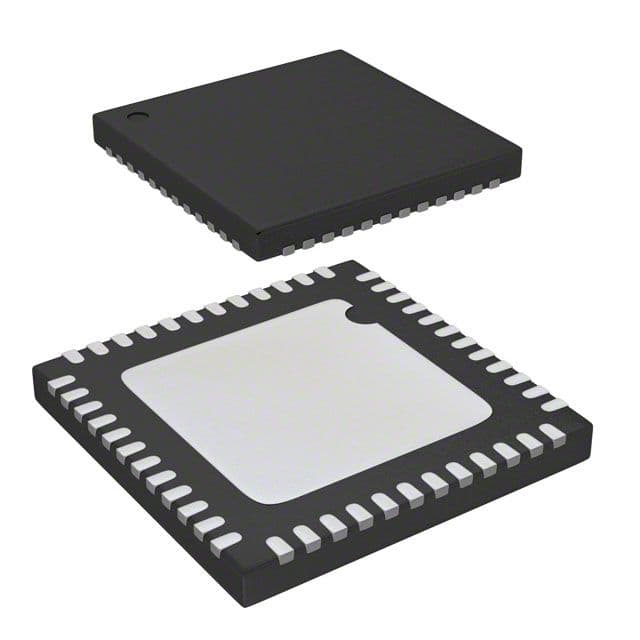

Product Images
