32-bit ARM Cortex-M0 microcontroller featuring 64KB FLASH memory and 8KB RAM. Operates at a maximum frequency of 48MHz, with 27 programmable I/Os. Includes multiple interfaces such as I2C, SPI, UART, USART, HDMI, and IrDA. Equipped with 13 A/D converter channels, 1 D/A converter, and 6 PWM channels. This MCU offers 8 timers/counters and peripherals like POR, WDT, and DMA, with a wide operating temperature range of -40°C to 105°C.
Frequency48MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F051K8U7TR technical specifications.
General
| Package/Case | UFQFPN |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Height | 0.55mm |
| Interface | I2C, SPI, HDMI, IrDA, UART, USART, LIN, I2S |
| Length | 5.1mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 105°C |
| Max Power Dissipation | 526mW |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Nominal Supply Current | 1.7uA |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 13 |
| Number of Channels | 10 |
| Number of D/A Converters | 1 |
| Number of I/Os | 27 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 27 |
| Number of PWM Channels | 6 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 8 |
| Operating Supply Voltage | 3.6V |
| Oscillator Type | Internal |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peripherals | POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 8KB |
| RoHS Compliant | Yes |
| Series | STM32 F0 |
| Watchdog Timer | Yes |
| Width | 5.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F051K8U7TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F051K8U7TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

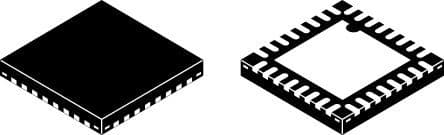

Product Images
