32-bit ARM Cortex-M0+ microcontroller featuring 64KB Flash memory and 16KB RAM. Operates at up to 48MHz with 87 programmable I/Os. Supports I2C, SPI, HDMI, IrDA, UART, USART, and I2S interfaces. Includes 9 timers/counters, POR, PWM, WDT, and DMA peripherals. Operates from 2V to 3.6V, with a max power dissipation of 364mW and an operating temperature range of -40°C to 85°C. RoHS compliant, surface mount package.
Frequency48MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F071V8H6 technical specifications.
General
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 48MHz |
| Interface | I2C, SPI, HDMI, IrDA, UART, USART, I2S |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 364mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of I/Os | 87 |
| Number of Programmable I/O | 87 |
| Number of Timers/Counters | 9 |
| Oscillator Type | Internal |
| Package Quantity | 2496 |
| Peripherals | POR, PWM, WDT, DMA |
| RAM Size | 16KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32F0 |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F071V8H6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F071V8H6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

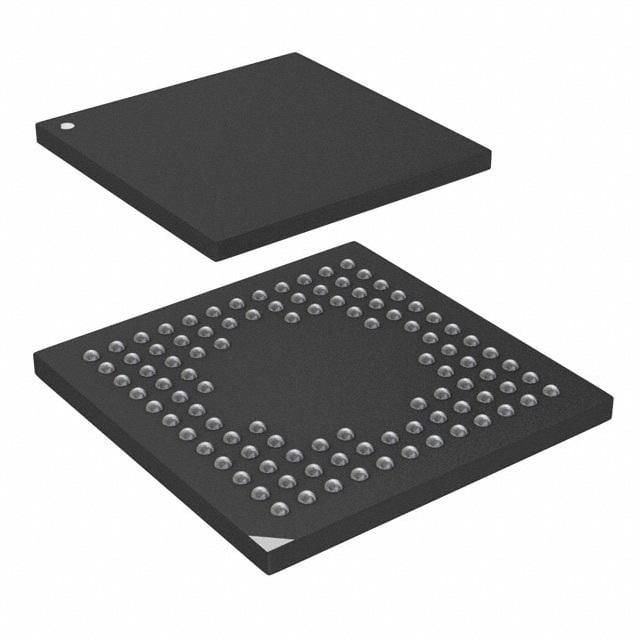

Product Images
