32-bit ARM Cortex-M0 microcontroller featuring 128KB FLASH memory and 16KB RAM. Operates at a maximum frequency of 48MHz with a 32-bit data bus. Offers extensive connectivity including I2C, SPI, USB, CAN, and USART interfaces. Includes 13 A/D converter channels, 2 D/A converters, and 37 I/O pins. Operates within a 2V to 3.6V supply voltage range and a temperature range of -40°C to 85°C. Packaged in LQFP, this lead-free and RoHS compliant component is ideal for embedded applications.
Frequency48MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F072CBT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, CAN, USART
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Nominal Supply Current
1.8uA
Number of A/D Converters
1
Number of ADC Channels
13
Number of Channels
10
Number of D/A Converters
2
Number of I/Os
37
Number of I2C Channels
2
Number of SPI Channels
2
Package Quantity
1500
RAM Size
16KB
RoHS Compliant
Yes
Series
STM32F072CB
Weight
0.006409oz
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F072CBT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F072CBT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

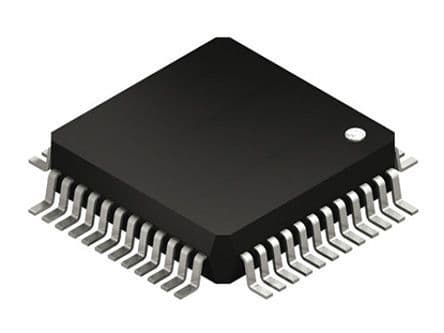

Product Images
