32-bit ARM Cortex-M0 microcontroller featuring 64KB FLASH memory and 16KB RAM. Operates at a maximum frequency of 48MHz with 51 programmable I/Os. Supports multiple interfaces including I2C, SPI, USB, CAN, and HDMI. This surface mount device is housed in an LQFP package, offering 19 ADC channels and 9 timers. RoHS compliant and lead-free, suitable for operation between -40°C and 85°C.
Frequency48MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F072R8T6TR technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Height | 1.45mm |
| Interface | I2C, SPI, USB, CAN, USART, HDMI, IrDA, UART, LIN, I2S |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 455mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of ADC Channels | 19 |
| Number of I/Os | 51 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 51 |
| Number of PWM Channels | 6 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 9 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Peripherals | POR, PWM, WDT, DMA |
| RAM Size | 16KB |
| RoHS Compliant | Yes |
| Series | STM32 F0 |
| Watchdog Timer | Yes |
| Weight | 0.012088oz |
| Width | 10.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F072R8T6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F072R8T6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

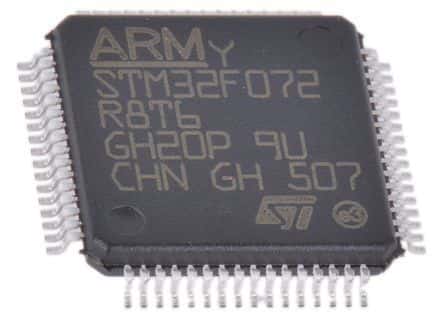

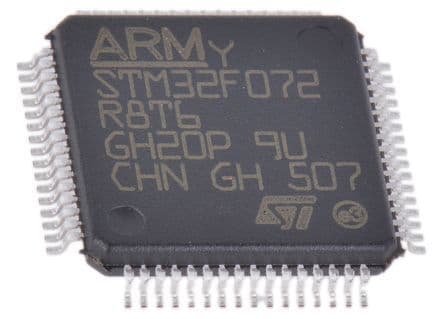

Product Images
