32-bit ARM Cortex-M3 microcontroller featuring 16KB Flash memory and 4KB RAM, operating at up to 24MHz. This LQFP packaged MCU offers 37 programmable I/Os, 10 ADC channels, 6 PWM channels, and 6 timers. Integrated peripherals include I2C, SPI, UART, USART, LIN, IrDA, POR, WDT, DMA, and a temperature sensor. With a supply voltage range of 2V to 3.6V and an operating temperature of -40°C to 105°C, it is RoHS compliant.
Frequency24MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F100C4T7B technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
24MHz
Height
1.45mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Length
7.2mm
Max Frequency
24MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
363mW
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of ADC Channels
10
Number of I/Os
37
Number of I2C Channels
1
Number of Programmable I/O
37
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
6
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F1
Watchdog Timer
Yes
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F100C4T7B Datasheet
Download the complete datasheet for Stmicroelectronics STM32F100C4T7B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

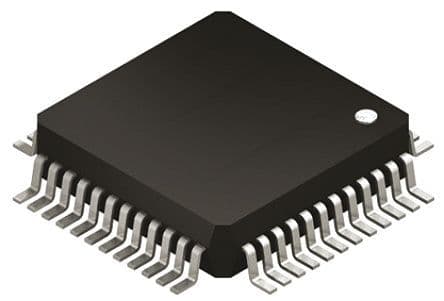

Product Images
