32-bit ARM RISC microcontroller featuring 72MHz clock speed and 32KB FLASH memory. This surface mount device offers 10KB RAM, 37 I/Os, and supports I2C, SPI, USB, IrDA, UART, USART, and CAN interfaces. Operating from 2V to 3.6V, it includes peripherals like POR, PWM, WDT, DMA, and a temperature sensor, with an operating temperature range of -40°C to 85°C. Packaged in a 7x7mm LQFP-48 with 0.50mm pitch, this RoHS compliant component is ideal for embedded applications.
Frequency72MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103C6T6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
32KB
Frequency
72MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN
Lead Free
Lead Free
Length
7mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
363mW
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
32
Number of I/Os
37
Number of Programmable I/O
48
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor
Radiation Hardening
No
RAM Size
10KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103C6T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103C6T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

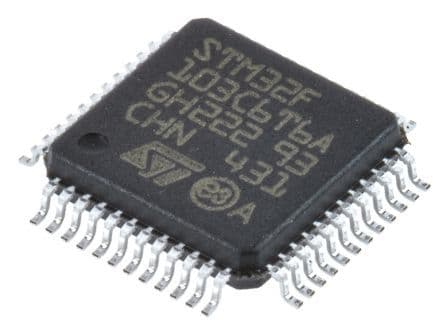

Product Images
