32-bit ARM Cortex-M3 microcontroller featuring 64KB FLASH memory and a 72MHz CPU. Offers 2 A/D converters with 16 channels, 2 I2C, 2 SPI, USB, CAN, and UART interfaces. Includes 51 I/O pins, 4 timers/counters, and integrated POR, PWM, WDT, DMA, and temperature sensor peripherals. Operates from 2V to 3.6V supply voltage, with a maximum power dissipation of 444mW. Packaged in an LQFP with SMD/SMT termination.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103R8T6 technical specifications.
General
Address Bus Width
32b
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
64KB
Frequency
72MHz
Height
1.45mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
444mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Nominal Supply Current
1.7uA
Number of A/D Converters
2
Number of ADC Channels
16
Number of Bits
32
Number of I/Os
51
Number of I2C Channels
2
Number of Programmable I/O
64
Number of PWM Channels
1
Number of SPI Channels
2
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
20KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103R8T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103R8T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

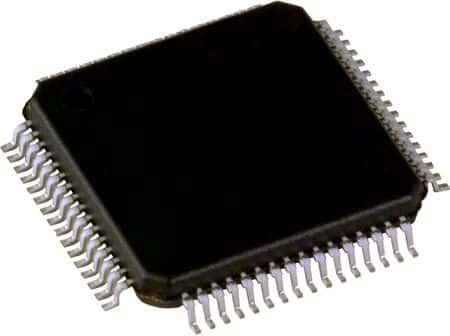

Product Images
