32-bit ARM Cortex-M3 microcontroller featuring 128KB FLASH memory and 20KB RAM. Operates at a maximum frequency of 72MHz with a 32-bit data bus. Offers extensive connectivity including I2C, SPI, USB, CAN, USART, IrDA, UART, and LIN interfaces. Includes 16 ADC channels, 51 programmable I/Os, and 4 timers/counters. Packaged in LQFP and supplied on tape and reel, this RoHS compliant component operates within a -40°C to 85°C temperature range.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103RBT6TR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Interface
I2C, SPI, USB, CAN, USART, IrDA, UART, LIN
Lead Free
Lead Free
Max Frequency
72MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
444mW
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of ADC Channels
16
Number of I/Os
51
Number of Programmable I/O
51
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
20KB
RoHS Compliant
Yes
Series
STM32 F1
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103RBT6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103RBT6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

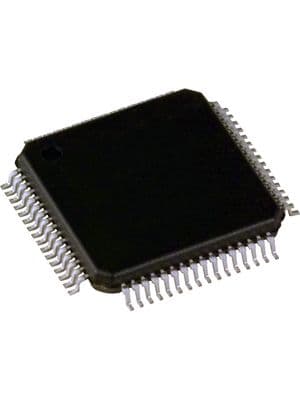

Product Images
