32-bit ARM Cortex-M3 microcontroller featuring 512KB FLASH and 64KB RAM. Operates at a maximum frequency of 72MHz with a 32-bit data bus. Offers extensive interfaces including I2C, SPI, USB, CAN, and USART, alongside 16 ADC channels across 3 ADCs and 2 DACs. Housed in an LQFP package with 51 I/Os, this RoHS compliant component supports operating temperatures from -40°C to 85°C.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103RET6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Height
1.4mm
Interface
I2C, SPI, USB, CAN, USART
Length
10mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of A/D Converters
3
Number of ADC Channels
16
Number of D/A Converters
2
Number of I/Os
51
Number of Timers/Counters
8
Package Quantity
960
Packaging
Tray
RAM Size
64KB
RoHS Compliant
Yes
Series
STM32F103RE
Weight
0.134041oz
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103RET6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103RET6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

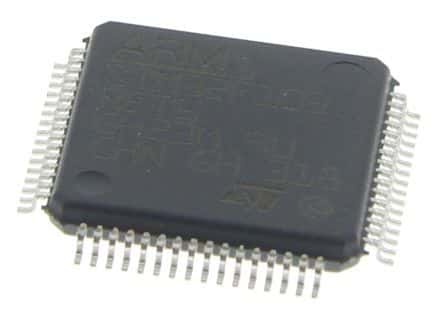

Product Images
