32-bit ARM Cortex-M3 microcontroller featuring 32KB Flash memory and a 72MHz CPU. This MCU offers 26 programmable I/Os, 8 PWM channels, and multiple interfaces including I2C, SPI, USB, and CAN. Operating from 2V to 3.6V, it supports a wide temperature range of -40°C to 105°C. The UFQFPN package is SMD/SMT terminated, with dimensions of 6mm x 6.125mm x 0.95mm. Integrated peripherals include POR, WDT, DMA, and a temperature sensor.
Frequency72MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103T6U6 technical specifications.
General
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Density
32KB
Frequency
72MHz
Height
0.95mm
Interface
I2C, SPI, USB, CAN, USART, IrDA, UART
Lead Free
Lead Free
Length
6mm
Max Frequency
72MHz
Max Operating Temperature
105°C
Max Power Dissipation
1.11W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
10
Number of Bits
32
Number of I/Os
26
Number of I2C Channels
1
Number of Programmable I/O
26
Number of PWM Channels
8
Number of SPI Channels
1
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
2940
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor
Radiation Hardening
No
RAM Size
10KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
6.125mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103T6U6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103T6U6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

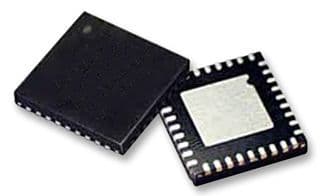

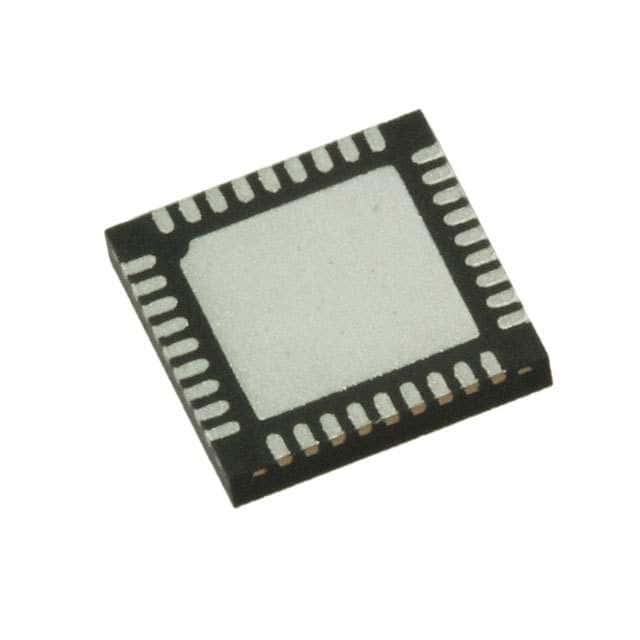

Product Images
