32-bit ARM Cortex-M3 microcontroller featuring 64KB Flash memory and 20KB RAM. Operates at a maximum frequency of 72MHz, with a 32-bit data bus. Offers extensive interfaces including I2C, SPI, USB, CAN, USART, IrDA, UART, and LIN. Includes 26 programmable I/Os, 10 ADC channels, 6 PWM channels, and 4 timers. Packaged in UFQFPN with dimensions of 6.13mm (L) x 6.125mm (W) x 0.95mm (H), operating from 2V to 3.6V supply.
Frequency72MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103T8U7 technical specifications.
General
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
0.95mm
Interface
I2C, SPI, USB, CAN, USART, IrDA, UART, LIN
Lead Free
Lead Free
Length
6.13mm
Max Frequency
72MHz
Max Operating Temperature
105°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
10
Number of I/Os
26
Number of I2C Channels
1
Number of Programmable I/O
26
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
2940
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
20KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Watchdog Timer
Yes
Width
6.125mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103T8U7 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103T8U7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

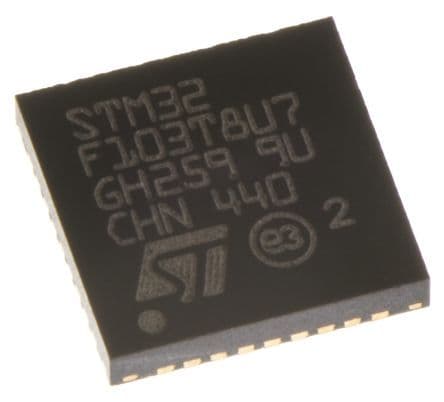

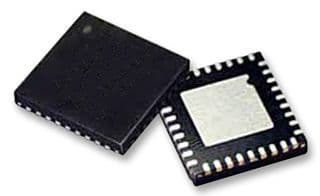

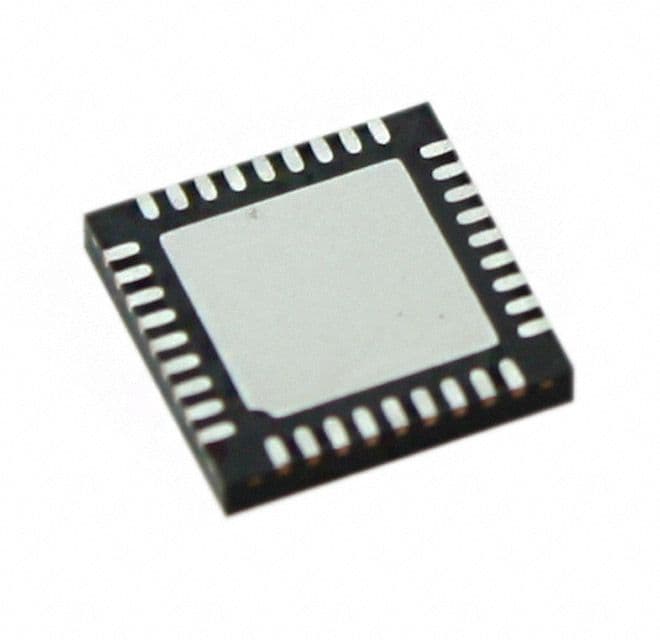

Product Images
