32-bit ARM Cortex-M3 microcontroller featuring 64KB FLASH memory and 20KB RAM. Operates at a maximum frequency of 72MHz with an internal oscillator. Offers 26 programmable I/Os and supports interfaces including I2C, SPI, USB, CAN, IrDA, UART, USART, and LIN. Includes 4 timers/counters and peripherals such as POR, PWM, WDT, DMA, and a temperature sensor. Packaged in UFQFPN, this lead-free and RoHS compliant MCU operates from 2V to 3.6V with a maximum operating temperature of 105°C.
Frequency72MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103T8U7TR technical specifications.
General
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN
Lead Free
Lead Free
Max Frequency
72MHz
Max Operating Temperature
105°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Min Supply Voltage
2V
Number of I/Os
26
Number of Programmable I/O
26
Number of Timers/Counters
4
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT, DMA, Temp Sensor
Radiation Hardening
No
RAM Size
20KB
RoHS Compliant
Yes
Series
STM32 F1
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103T8U7TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103T8U7TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

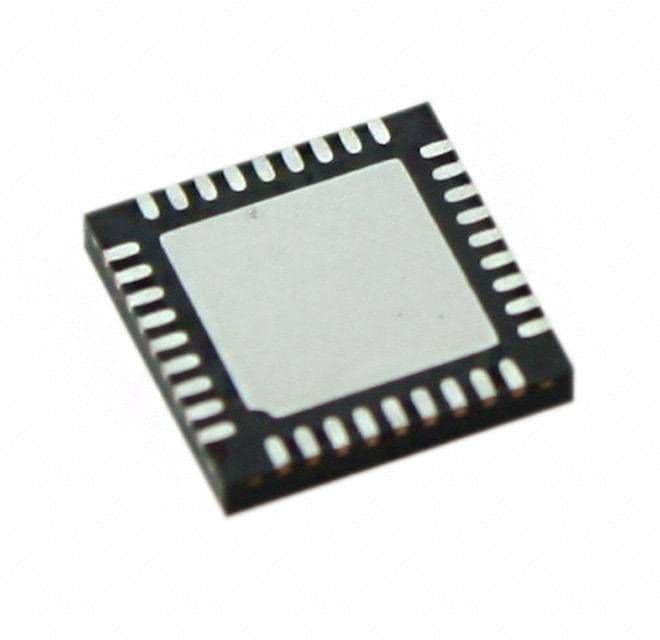

Product Images
