32-bit ARM Cortex-M3 microcontroller featuring a 72MHz CPU and 384KB of FLASH memory. This MCU offers 64KB RAM, 80 programmable I/Os, and extensive interfaces including I2C, SPI, USB, UART, CAN, and LIN. Integrated peripherals include POR, PWM, WDT, DMA, and a temperature sensor, with 16 PWM channels and 8 timers/counters. Packaged in an LQFP, this lead-free, RoHS-compliant component operates from 2V to 3.6V with a temperature range of -40°C to 85°C.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103VDT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
1.45mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, LIN
Lead Free
Lead Free
Length
14mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
434mW
Max Supply Voltage
3.6V
Memory Size
384KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Nominal Supply Current
1.9uA
Number of A/D Converters
3
Number of ADC Channels
16
Number of Channels
16
Number of D/A Converters
2
Number of I/Os
80
Number of I2C Channels
2
Number of Programmable I/O
80
Number of PWM Channels
16
Number of SPI Channels
3
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor
Radiation Hardening
No
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103VDT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103VDT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

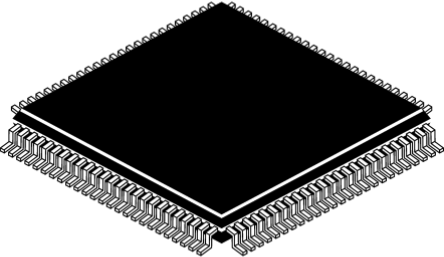

Product Images
