32-bit ARM Cortex-M3 microcontroller featuring 72MHz CPU speed and 384KB FLASH memory. This MCU offers 64KB RAM, 112 programmable I/Os, and extensive interfaces including I2C (2 channels), SPI (3 channels), USB, CAN, IrDA, UART, USART, and LIN. Integrated peripherals include POR, PWM, WDT, DMA, and a temperature sensor. Packaged in LFBGA with dimensions of 10mm x 10.15mm x 1.07mm, it operates from 2V to 3.6V supply voltage and has a max power dissipation of 500mW.
Frequency72MHz
PackageLFBGA
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103ZDH6 technical specifications.
General
Package/Case
LFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
1.07mm
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
3.6V
Memory Size
384KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of ADC Channels
21
Number of I/Os
112
Number of I2C Channels
2
Number of Programmable I/O
112
Number of SPI Channels
3
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F1
Watchdog Timer
Yes
Width
10.15mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103ZDH6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103ZDH6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

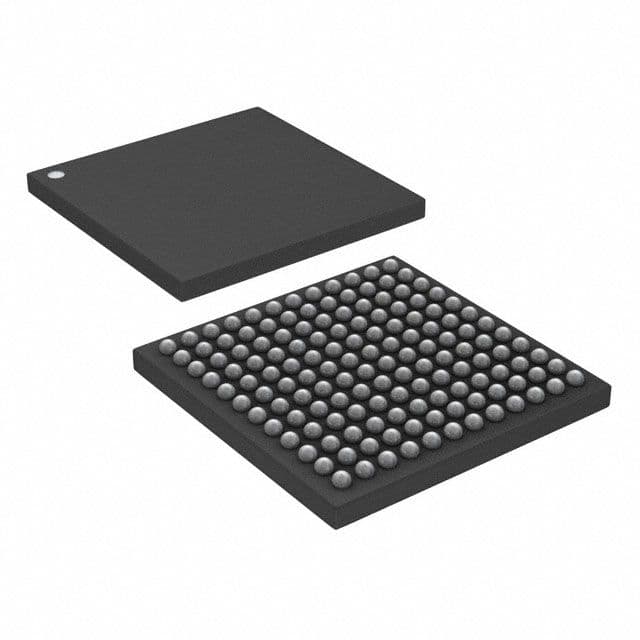

Product Images
