32-bit Arm Cortex-M3 microcontroller featuring a 72 MHz CPU and 1MB FLASH memory. This LQFP packaged MCU offers 112 programmable I/Os, 12 ADC channels, and 14 timers. Integrated interfaces include I2C (2 channels), SPI (3 channels), USB (1 channel), UART (2 channels), CAN, LIN, and IrDA. Operating voltage ranges from 2V to 3.6V, with a maximum power dissipation of 666mW and an operating temperature range of -40°C to 85°C. Peripherals include POR, PWM, WDT, DMA, and a temperature sensor.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103ZGT6TR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Height
1.45mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, LIN
Length
20.2mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
666mW
Memory Size
1MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
12
Number of I/Os
112
Number of I2C Channels
2
Number of Programmable I/O
112
Number of PWM Channels
4
Number of SPI Channels
3
Number of Timers/Counters
14
Number of UART Channels
2
Number of USB Channels
1
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
500
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT, DMA, Temp Sensor
Radiation Hardening
No
RAM Size
96KB
RoHS Compliant
Yes
Series
STM32F1
Watchdog Timer
Yes
Width
20.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103ZGT6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103ZGT6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

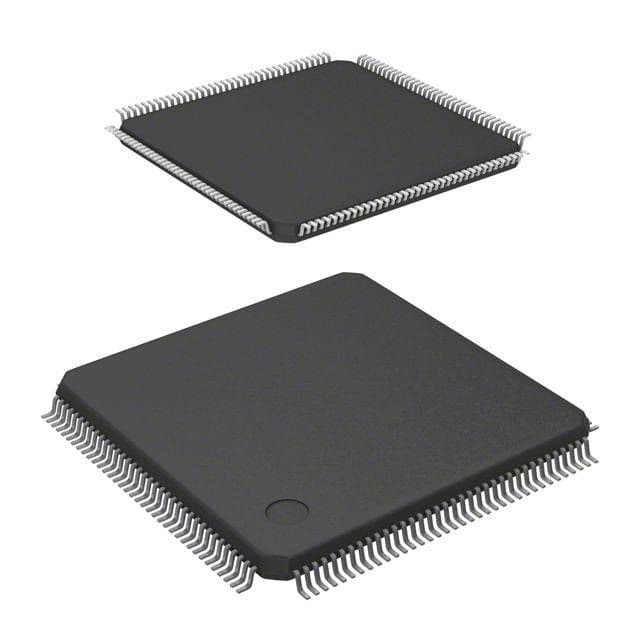

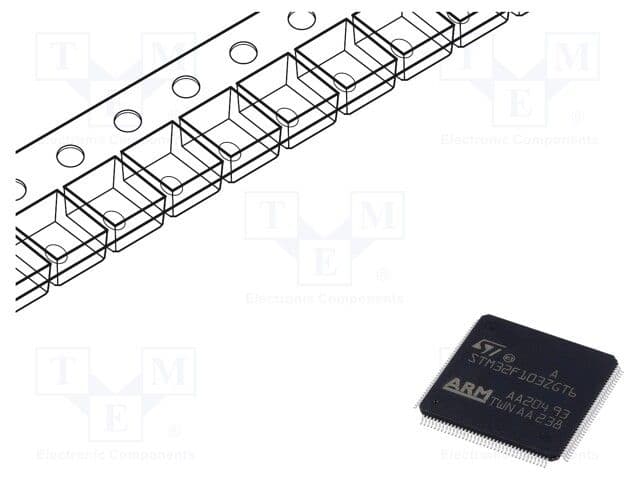

Product Images
