32-bit ARM Cortex-M3 microcontroller featuring a 72 MHz CPU and 64 KB FLASH memory. Offers extensive connectivity with CAN, USB 2.0 OTG, I2C, SPI, IrDA, UART, and USART interfaces. Includes 16 ADC channels, 80 I/Os, and 10 timers/counters, with integrated peripherals like POR, PWM, WDT, DMA, and Voltage Detect. Operates from 2V to 3.6V supply, with a temperature range of -40°C to 85°C, housed in an LQFP package.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F105V8T6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Height
1.4mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN
Lead Free
Lead Free
Length
14mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
16
Number of I/Os
80
Number of Timers/Counters
10
Oscillator Type
Internal
Package Quantity
540
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Voltage Detect
RAM Size
64KB
RoHS Compliant
Yes
Series
STM32F1
Weight
0.04653oz
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F105V8T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F105V8T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

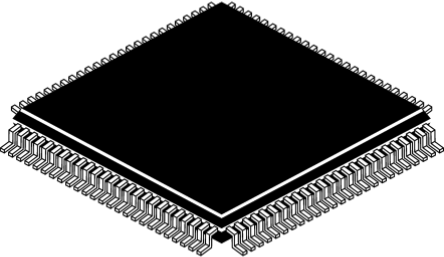

Product Images
