32-bit ARM Cortex-M3 microcontroller featuring 128KB Flash and 64KB RAM. Operates at a maximum frequency of 72MHz, with extensive connectivity including CAN, USB 2.0 OTG, I2C (2 channels), SPI (3 channels), UART, USART, LIN, I2S, and IrDA. Offers 16 ADC channels, 80 programmable I/Os, and 7 timers/counters. Packaged in LFBGA with a 2V to 3.6V supply voltage range and an operating temperature of -40°C to 85°C. Includes peripherals like POR, PWM, WDT, DMA, and Voltage Detect.
Frequency72MHz
PackageLFBGA
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F105VBH6 technical specifications.
General
Package/Case
LFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
1.085mm
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Length
10.15mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
434mW
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Number of ADC Channels
16
Number of I/Os
80
Number of I2C Channels
2
Number of Programmable I/O
80
Number of SPI Channels
3
Number of Timers/Counters
7
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Voltage Detect
Radiation Hardening
No
RAM Size
64KB
RoHS Compliant
Yes
Series
STM32 F1
Watchdog Timer
Yes
Width
10.15mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F105VBH6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F105VBH6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

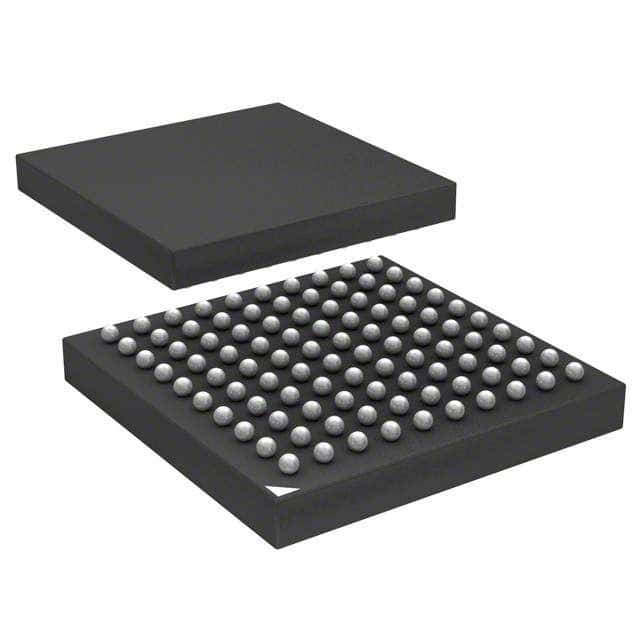

Product Images
