High-performance 32-bit microcontroller featuring an ARM Cortex-M3 core operating at 120MHz, enhanced by an ART Accelerator for efficient flash memory access. This MCU offers 1MB of FLASH memory and 128KB of RAM, supporting a wide array of interfaces including Ethernet, USB, CAN, I2C, SPI, and UART. It boasts 24 ADC channels, 14 timers, and 140 I/Os, with integrated peripherals like DMA and PWM. Packaged in a 168-pin BGA, it operates from 1.8V to 3.6V and across a temperature range of -40°C to 105°C.
Frequency120MHz
PackageBGA
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F207IGH7 technical specifications.
General
| Package/Case | BGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 120MHz |
| Height | 0.5mm |
| Interface | I2C, SPI, USB, CAN, Ethernet, IrDA, MMC, UART, USART, LIN |
| Length | 10.05mm |
| Max Frequency | 120MHz |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 1024KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 24 |
| Number of Ethernet Channels | 1 |
| Number of I/Os | 140 |
| Number of I2C Channels | 3 |
| Number of PWM Channels | 6 |
| Number of SPI Channels | 3 |
| Number of Timers/Counters | 14 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 168 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD |
| Radiation Hardening | No |
| RAM Size | 128KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32 F2 |
| Width | 10.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F207IGH7 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F207IGH7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

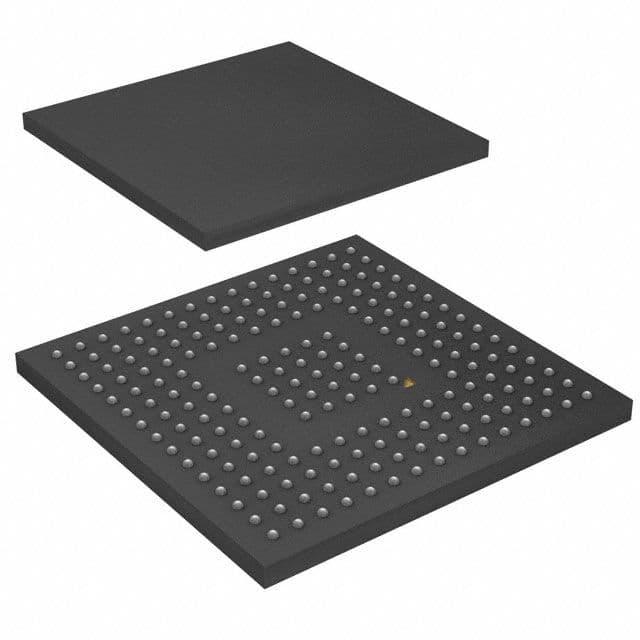

Product Images
