32-bit ARM Cortex-M4 microcontroller featuring DSP and FPU capabilities. Offers 64KB Flash memory and 16KB RAM, operating at up to 72MHz. Includes 15 ADC channels with 5 MSPS conversion rate, comparator, and op-amp. Supports I2C, SPI, USB, CAN, UART, and other interfaces, with 24 programmable I/Os. Packaged in UFQFPN, this lead-free, RoHS-compliant MCU operates from -40°C to 85°C.
Frequency72MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F302K8U6 technical specifications.
General
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Density
64KB
Frequency
72MHz
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Max Frequency
72MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
540mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of ADC Channels
15
Number of I/Os
24
Number of Programmable I/O
24
Number of Timers/Counters
9
Oscillator Type
Internal
Package Quantity
2940
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F3
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F302K8U6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F302K8U6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

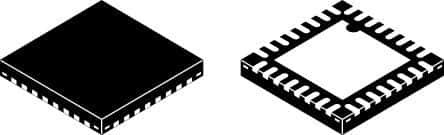

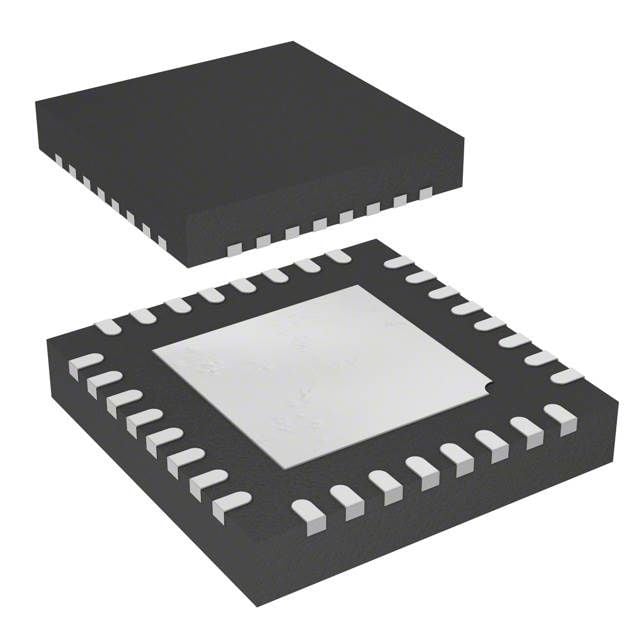

Product Images
