32-bit ARM Cortex-M4 microcontroller featuring DSP and FPU capabilities, operating at up to 72MHz. This MCU offers 64KB of FLASH memory and 16KB of RAM, with a Memory Protection Unit (MPU). Integrated peripherals include a 16-bit ADC, comparators, and extensive communication interfaces such as I2C (2 channels), SPI (3 channels), USB (1 channel), UART, USART, CAN, LIN, and I2S. It supports 36 programmable I/Os, 14 timers/counters, and includes a watchdog timer. Packaged in LQFP, this RoHS compliant component operates from 2V to 3.6V supply voltage and is suitable for temperatures between -40°C and 85°C.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F373C8T6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
1.45mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, LIN, I2S
Lead Free
Lead Free
Length
7mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
364mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of I/Os
36
Number of I2C Channels
2
Number of Programmable I/O
36
Number of PWM Channels
1
Number of SPI Channels
3
Number of Timers/Counters
14
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F3
Watchdog Timer
Yes
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F373C8T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F373C8T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

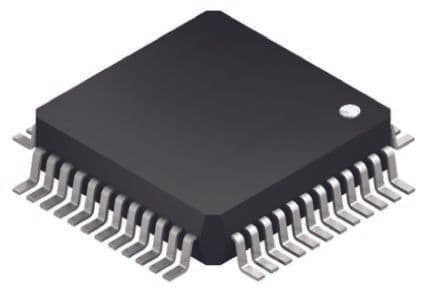

Product Images
