32-bit ARM Cortex-M4 microcontroller featuring DSP and FPU capabilities, operating at up to 72MHz. This MCU offers 128KB of FLASH memory and 24KB of RAM, with 52 programmable I/Os. Integrated peripherals include I2C, SPI, USB, UART, CAN, LIN, I2S, comparators, and a 16-bit ADC. Packaged in LQFP, it supports a supply voltage range of 2V to 3.6V and operates from -40°C to 85°C.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F373RBT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
1.45mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, LIN, I2S
Lead Free
Lead Free
Length
10mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
444mW
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of I/Os
52
Number of I2C Channels
2
Number of Programmable I/O
52
Number of PWM Channels
1
Number of SPI Channels
3
Number of Timers/Counters
14
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
24KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F3
Watchdog Timer
Yes
Width
10.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F373RBT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F373RBT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

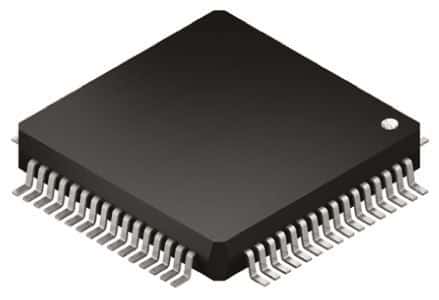

Product Images
