32-bit ARM Cortex-M4 microcontroller featuring DSP and FPU capabilities, operating at up to 72MHz. This MCU offers 64KB of FLASH memory and 16KB of RAM, with 16 analog-to-digital converter channels. Integrated peripherals include I2C, SPI, USB, CAN, UART, and a watchdog timer. Housed in an LQFP package, it supports a wide operating temperature range of -40°C to 85°C and is RoHS compliant.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F373V8T6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
1.45mm
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Length
14mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
434mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of ADC Channels
16
Number of I/Os
84
Number of I2C Channels
2
Number of Programmable I/O
84
Number of SPI Channels
3
Number of Timers/Counters
14
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F3
Watchdog Timer
Yes
Width
14.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F373V8T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F373V8T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

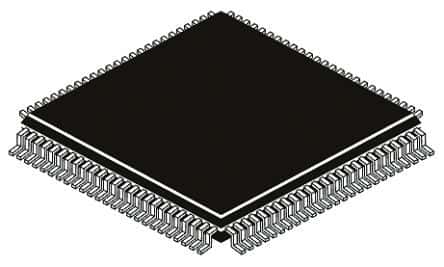

Product Images
