32-bit ARM Cortex-M4 microcontroller featuring a 72MHz CPU with DSP and FPU capabilities. Offers 128KB Flash memory and 24KB RAM, supporting mixed-signal applications with integrated comparators. Equipped with a rich set of interfaces including I2C, SPI, USB, UART, CAN, and LIN, alongside 14 timers and 84 programmable I/Os. Operates within a 2V to 3.6V supply range and is housed in an LQFP package.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F373VBT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
1.45mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, LIN, I2S
Lead Free
Lead Free
Length
14mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
434mW
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of I/Os
84
Number of I2C Channels
2
Number of Programmable I/O
84
Number of PWM Channels
1
Number of SPI Channels
3
Number of Timers/Counters
14
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
24KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F3
Watchdog Timer
Yes
Width
14.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F373VBT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F373VBT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

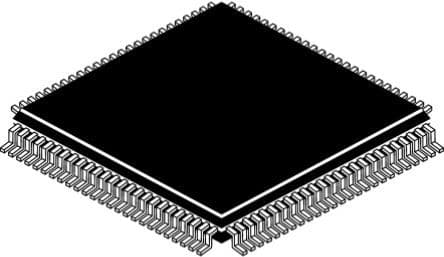

Product Images
