Stmicroelectronics
STM32F405OGY6WTR
High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 168 MHz CPU, ART Accelerator, FSMC
Frequency168MHz
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F405OGY6WTR technical specifications.
General
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, IrDA, UART, USART, EBI/EMI
Max Frequency
168MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
1MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of I/Os
72
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
RAM Size
192KB
RoHS Compliant
Yes
Series
STM32F4
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F405OGY6WTR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F405OGY6WTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

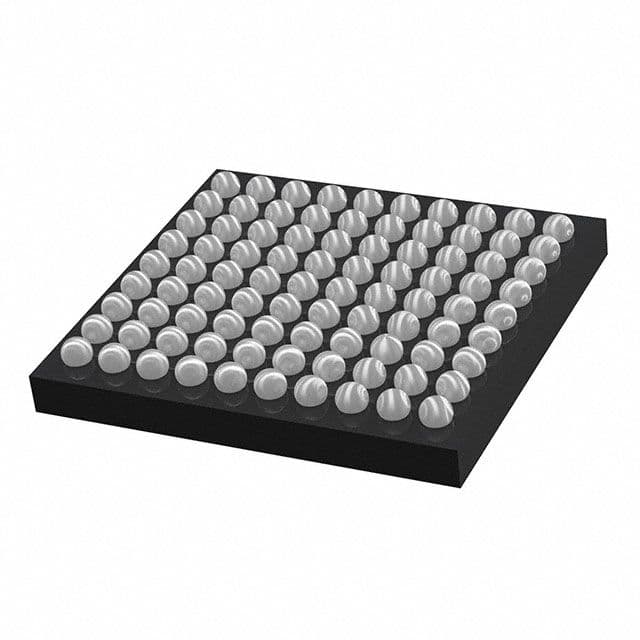

Product Images
