32-bit ARM Cortex-M4 microcontroller featuring a 168MHz CPU with DSP and FPU capabilities. Includes 1MB of FLASH memory and 196KB of RAM, supported by an ART Accelerator for enhanced performance. Offers extensive connectivity with I2C, SPI, USB, UART, CAN, LIN, and I2S interfaces, alongside 51 programmable I/Os. Equipped with multiple peripherals including DMA, LCD controller, and 14 timers, this surface mount LQFP package operates from -40°C to 85°C.
Frequency168MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F405RGT6TR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Height
1.45mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, LIN, I2S
Lead Free
Lead Free
Length
10mm
Max Frequency
168MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
435mW
Memory Size
1024KB
Memory Type
FLASH,
Mount
Surface Mount
Nominal Supply Current
1.7uA
Number of A/D Converters
3
Number of ADC Channels
16
Number of Channels
16
Number of D/A Converters
2
Number of I/Os
51
Number of I2C Channels
3
Number of Programmable I/O
51
Number of PWM Channels
8
Number of SPI Channels
3
Number of Timers/Counters
14
Number of UART Channels
2
Number of USB Channels
2
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
196KB
RoHS Compliant
Yes
Series
STM32F4
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F405RGT6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F405RGT6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

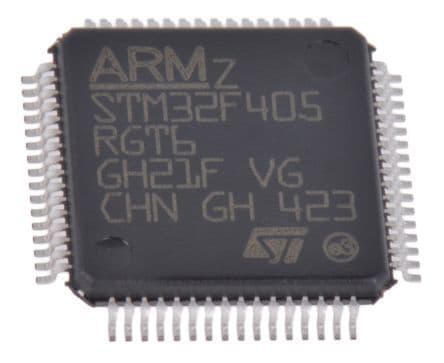

Product Images
