32-bit microcontroller featuring an Arm Cortex-M4 core with DSP and FPU, operating at up to 168MHz. This MCU offers 1MB of FLASH memory and 192KB of RAM, supported by an ART Accelerator for enhanced performance. It includes extensive peripherals such as 16 ADC channels, 3 I2C, 3 SPI, 6 PWM channels, 17 timers, 2 UARTs, USB, CAN, and IrDA interfaces. Packaged in an LQFP form factor, it operates from 1.8V to 3.6V and across a temperature range of -40°C to 85°C.
Frequency168MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F405RGT6V technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
168MHz
Height
1.4mm
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN
Length
10mm
Max Frequency
168MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
1MB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
16
Number of I/Os
51
Number of I2C Channels
3
Number of PWM Channels
6
Number of SPI Channels
3
Number of Timers/Counters
17
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
RAM Size
192KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F4
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F405RGT6V Datasheet
Download the complete datasheet for Stmicroelectronics STM32F405RGT6V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

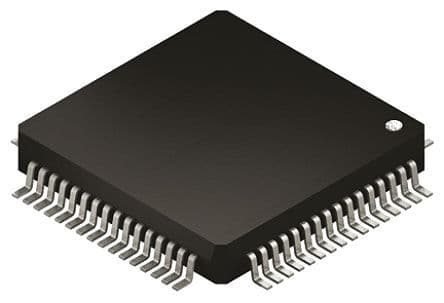

Product Images
