32-bit ARM Cortex-M4 microcontroller featuring a 168MHz CPU with DSP and FPU capabilities. Offers 1MB of FLASH memory and 192KB of RAM, supported by an ART Accelerator for enhanced performance. Includes 82 I/Os and a comprehensive interface suite including I2C, SPI, USB, CAN, UART, and USART. Operates across a -40°C to 85°C temperature range with supply voltages from 1.8V to 3.6V. Packaged in LQFP, this RoHS compliant component is ideal for demanding embedded applications.
Frequency168MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F405VGT6V technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
168MHz
Height
1.45mm
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN, EBI/EMI
Lead Free
Lead Free
Length
14.2mm
Max Frequency
168MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
1MB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of ADC Channels
19
Number of I/Os
82
Number of I2C Channels
2
Number of PWM Channels
2
Number of SPI Channels
3
Number of Timers/Counters
17
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
RAM Size
192KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F4
Width
14.2mm
Compliance
RoHS
Not Compliant
Datasheet
Stmicroelectronics STM32F405VGT6V Datasheet
Download the complete datasheet for Stmicroelectronics STM32F405VGT6V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

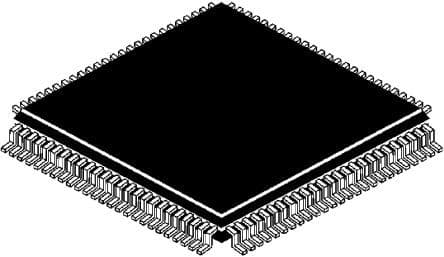

Product Images
