32-bit ARM Cortex-M4 microcontroller featuring a 168MHz CPU with DSP and FPU capabilities. Includes 512KB Flash memory and 192KB RAM, supported by an ART Accelerator for enhanced performance. Offers extensive connectivity with interfaces like Ethernet, USB, CAN, I2C, SPI, and UART. Equipped with 140 programmable I/Os, 24 ADC channels, and 14 timers, this LQFP packaged MCU operates from 1.8V to 3.6V.
Frequency168MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F407IET6 technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 168MHz |
| Height | 1.45mm |
| Interface | I2C, SPI, USB, CAN, Ethernet, IrDA, UART, USART, LIN, EBI/EMI, I2S |
| Lead Free | Lead Free |
| Length | 24.1mm |
| Max Frequency | 168MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 24 |
| Number of Ethernet Channels | 1 |
| Number of I/Os | 140 |
| Number of I2C Channels | 3 |
| Number of Programmable I/O | 140 |
| Number of SPI Channels | 3 |
| Number of Timers/Counters | 14 |
| Number of UART Channels | 2 |
| Number of USB Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 40 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD, I2C |
| Radiation Hardening | No |
| RAM Size | 192KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32 F4 |
| Watchdog Timer | Yes |
| Width | 24.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F407IET6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F407IET6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

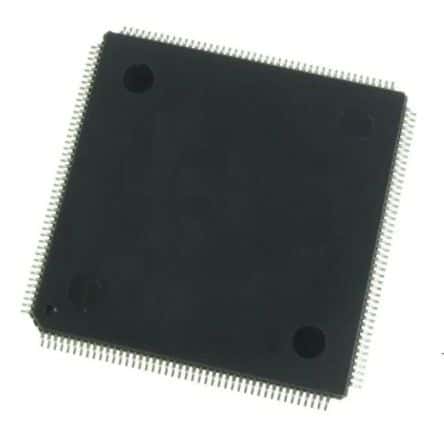

Product Images
